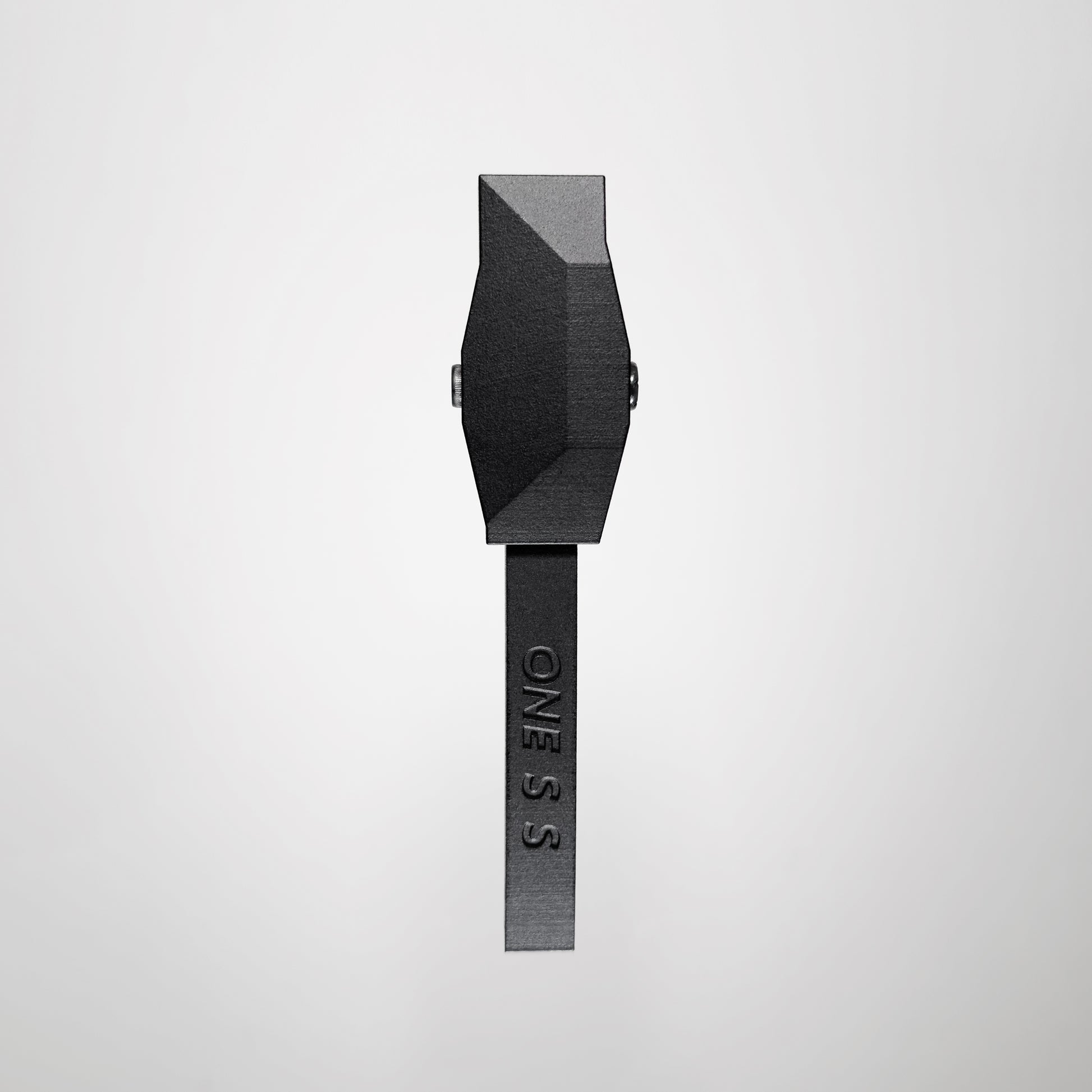

Arrow II Portable Adapter

Expand the capabilities of the L-MAP to host larger Yagi antennas from Arrow Antennas extensive "Arrow II Portable" line.

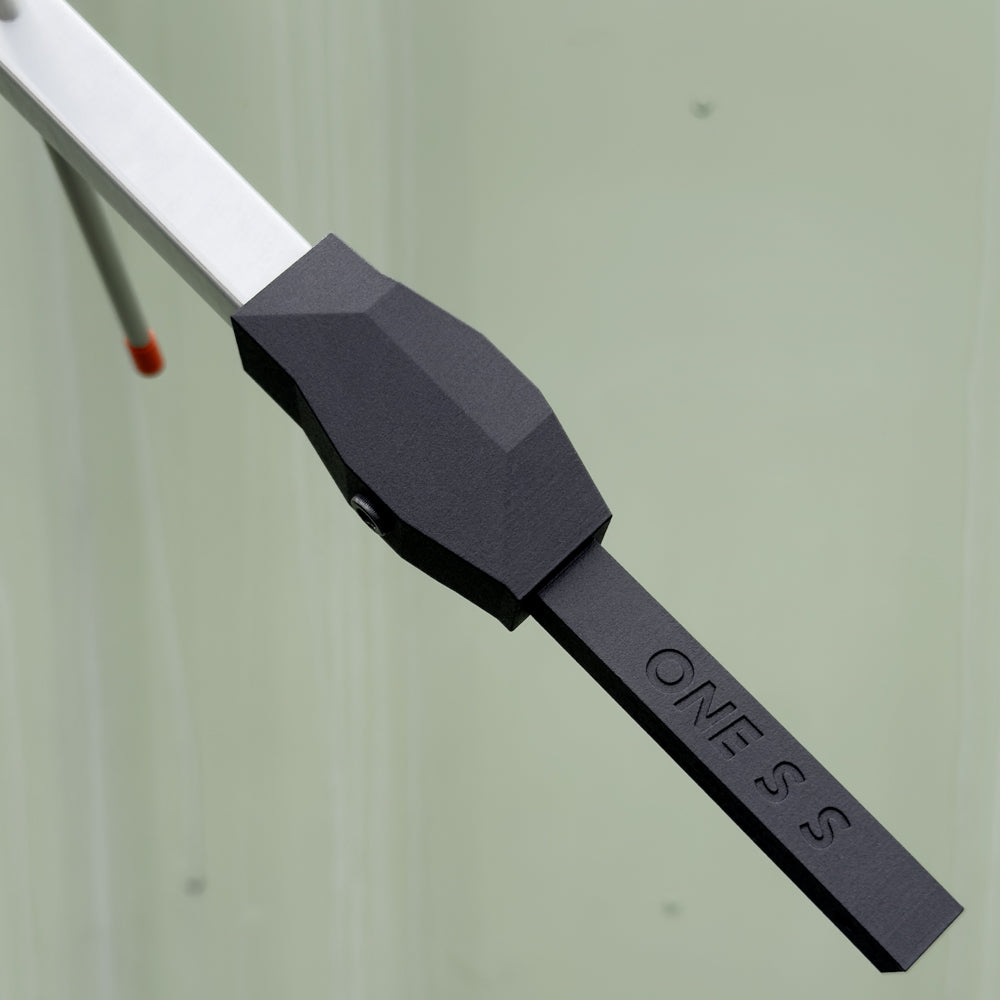

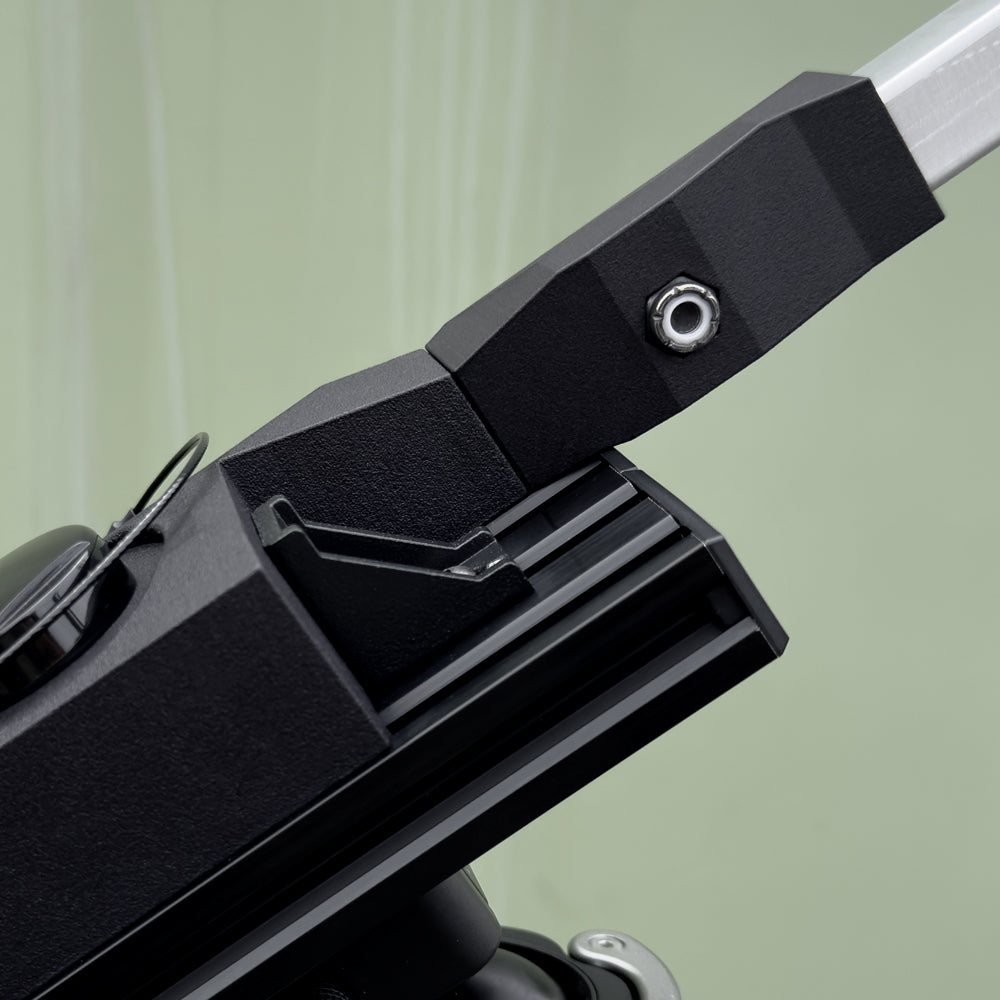

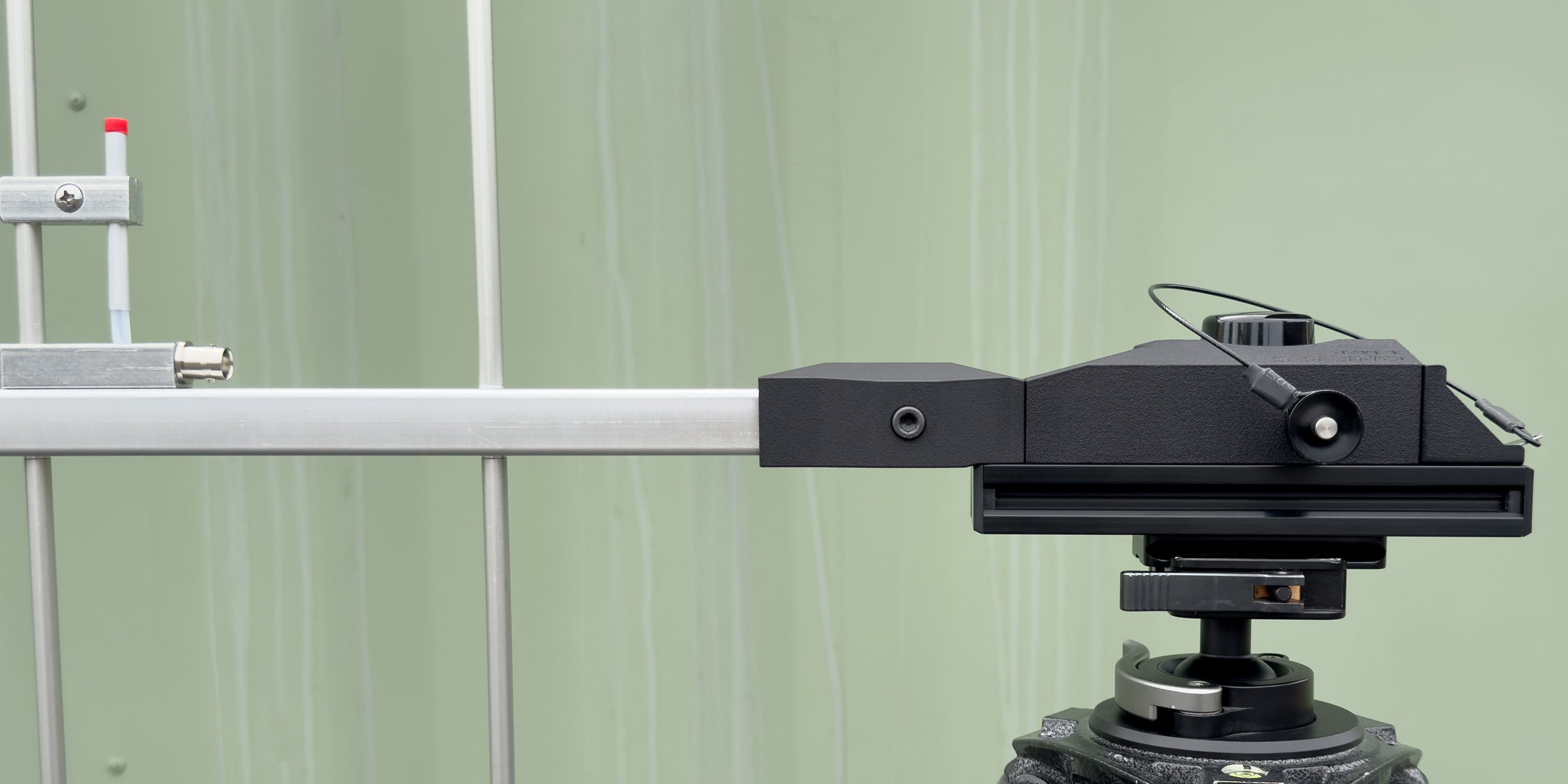

The Arrow II Portable is secured to the adapter via a 1/4" threaded hole that is located on the handle section, under the foam grip, of the antennas boom.  The adapter fits into the L-MAP's front receiver space and secures via the L-MAP's retention pin.

* The Arrow II Portable Yagi models that have a duplexer located inside the handle are not compatible with this adapter.

Included

• Arrow II Portable Adapter
• Hardware

Dimensions

• 165mm (L) x 35mm (W) x 35 (H)
• 51g (1.8oz)
